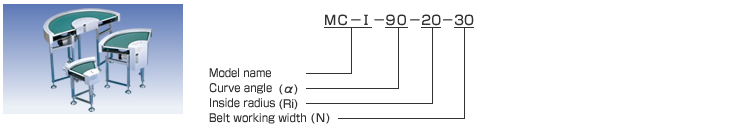

The curve conveyor system works efficiently in the minimal space of conveyor line systems. This conveyor system is the belt curving type conveyor, which turns goods on the conveyor belt smoothly and freely at any angular direction.

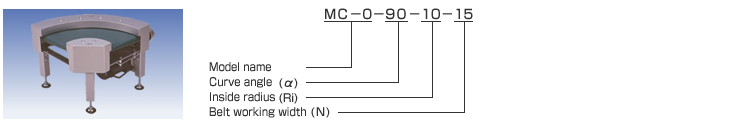

Micro-curve conveyor most suitable for conveying small load
Optimized for conveyor lines for small load.
Highly compact-design with a small curve radius.
Clean and offers direct contact conveyance of food.
Neither transition roller nor gap plate is required.
Low-noise and less vibration.
Operable at a wide range of speed from low to high.

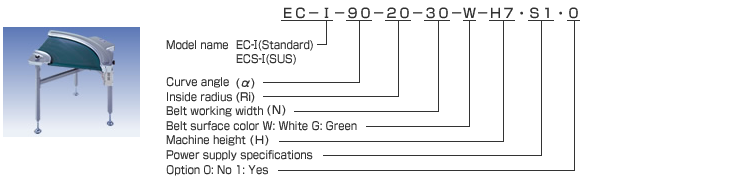

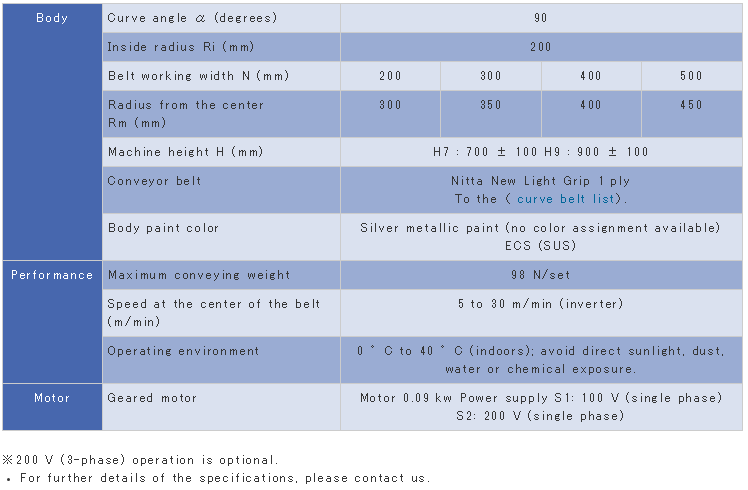

Micro-curve conveyor ready for high-speed operation and special-angle configuration
Small pulley diameter for smooth transition of small load.
Thin, compact-sized body with a small curve radius.
Low-noise and less vibration.
Having a large conveying capacity to handle a wide range of medium- or light-weighted objects.
Durable belt requiring less time and cost for maintenance.
Easy belt replacement.

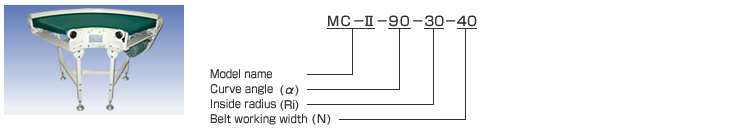

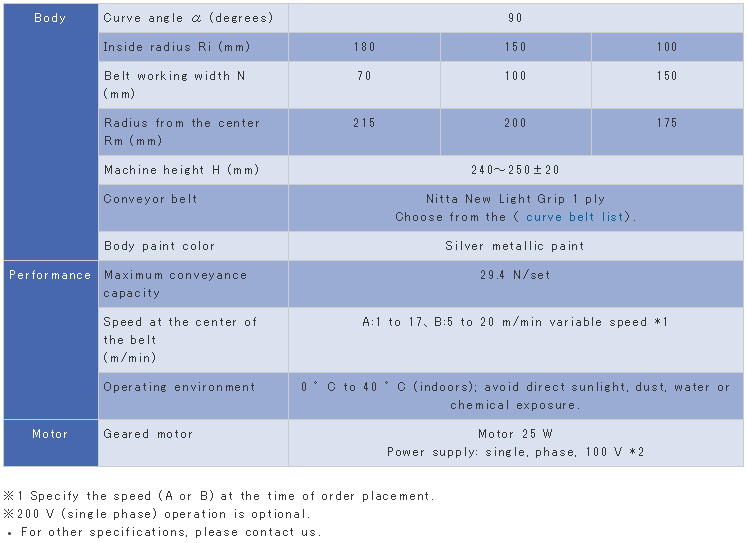

Compact-sized and economical belt curve conveyor
Small pulley diameter for smooth transition of small load.
Compact-sized body with a small curve radius.
Low-cost and economical.
Low-noise and less vibration.
Durable belt requiring less time and cost of maintenance.
Easy belt replacement.

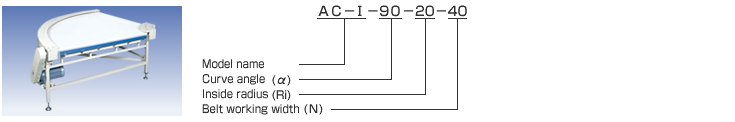

Mini-sized curve conveyor capable of forward/reverse operation
First-in-the-industry forward/reverse operation available.
Small rollers (ø 21) suitable for small load conveyance employed.
The belt has hygienic, anti-microbial and anti-mold specifications.
Light-weighted and economical.
One-touch mounting/release of the belt; no tool required.

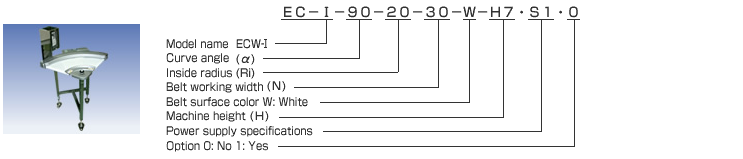

Mini-sized curve conveyor washable with water
Washable with water. Mechanism is oblivious to wetness.
First-in-the-industry forward/reverse operation available.
Small rollers (ø 21) suitable for small load conveyance employed.
The belt has hygienic, anti-microbial and anti-mold specifications.
Light-weighed and low-cost.
One-touch mounting/release of the belt; no tool required.

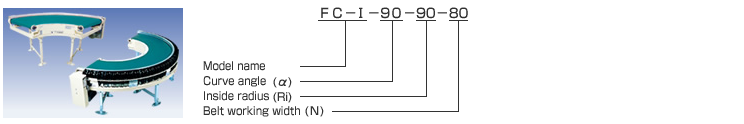

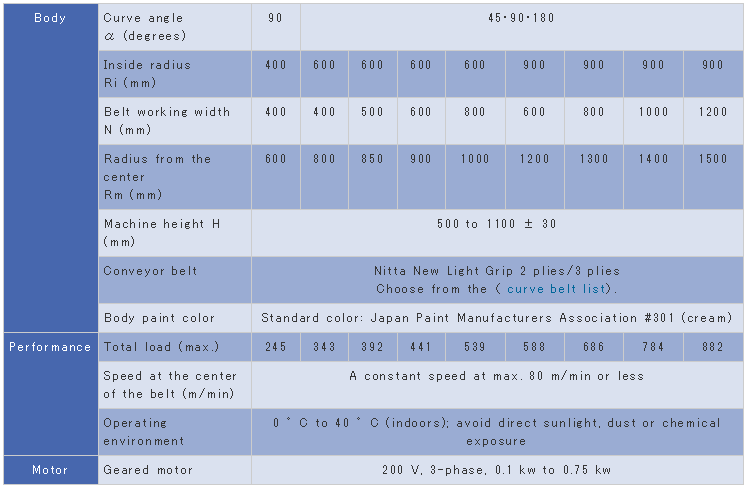

Belt curve conveyor compatible with a wide range of goods and angle directions
Low noise and vibration form the belt and rotating bodies.
Can convey a wide range of objects from small to large and heavy objects.
High-speed conveyance available.
Durable belt requiring less time and cost of maintenance.
Precise and smooth change of direction in any angle between 30 to 180 degrees.
Flexible curve belt selections based on applications.

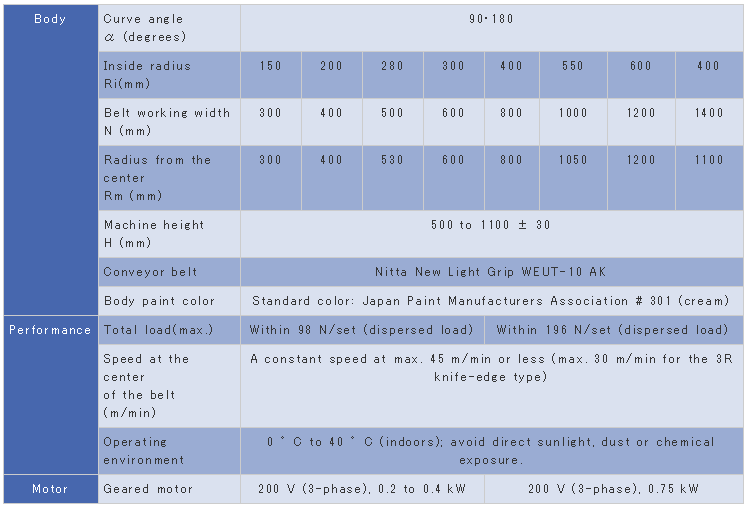

Messer curve conveyor enabling precisely driven conveyance of small laod
Optimized for conveyor lines for small load.
Neither transition roller nor gap plate is required.
Ready for wide belt conveyor with the width from 300 to 1,400 mm.
The belt has hygienic, anti-microbial and anti-mold specifications.
Knife-edge (3R) conveyor is available as an option.
